setfsb是一款非常好用的主板超频工具软件，有了它以后，用户就可以调节操作系统里面的总线频率了，使用方便，欢迎有需要的朋友到绿色资源网下载使用！

setfsb绿色版功能

1.PLL芯片的型号

完成诸如电压,内存分频之类的基本参数设置后,我们就可以开始软超频了。首先需要确定PLL芯片的型号。SetFSB超频的原理和在BIOS里修改参数的原理其实是一样的,都是通过向PLL芯片发送指令来改变系统总线的频率。PLL芯片一般可以在主板的PCI-E或PCI插槽附近找到,标注有如“ICS9*****”“RTM****”“SLG****”“CV1****”等型号字样。

2.在SETFSB软件中找到对应PLL型号

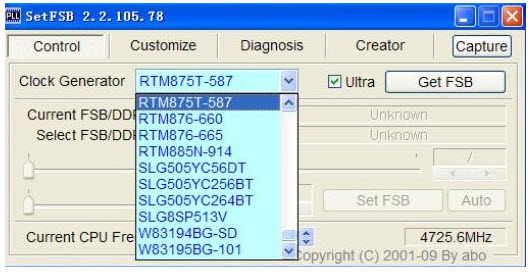

在主板上查看到PLL芯片的型号后,进入setfsb主界面,在第一个“Control”菜单里,“Clock Generator”右侧的下拉菜单里,选择对应的PLL芯片型号,比如你主板上PLL芯片上标称的是“RTM875T-531”,就在里面选择“RTM875T-531”。但如果这个版本的SETFSB发现并没有对应的RTM875T-531,这怎么办呢,不用着急,我们可以找个相类似的,比如RTM875T-587,因为芯片主型号是相同的,后面的3个数字不同,只表明芯片存在一点小差异,在setfsb里面还是可以通用的。

3.拖动滑杆即可进行软超频

接下来的工作就简单了,拉动滑动杆,点一下下方的“setfsb”,此时调整外频至483.5,CPUZ里也正确显示出482.4的外频。（某些PLL芯片会稍微有一点点误差）这个就可以算作超频成功了。当然要注意一点,SetFSB里面认到的频率是满倍频的,降倍频之后的主频要参考cpu-z中显示的频率。在必要的时候拉动下面的滑块还可以改动PCI-E频率。

SETFSB非常适合进行极限超频软超频安全性高,并且不会造成系统无法启动等问题。非常适合用来寻找处理器的极限频率,当然在超频之前,我们仍然需要在BIOS内对处理器电压,内存分频等进行设置。而一些没有超频设置的平台,比如笔记本,我们同样可以通过软超频来拉升处理器频率。

使用说明

1.About SetFSB Version 2.3.147.113

 This software is a shareware.

   Functional restriction : "Set FSB" button, Command Line Switch, Creator invalidity

 Supported Clock Generator (Motherboard/[Notebook]):

    ICS9148BF-26 (Gigabyte GA-6ZXC)

    ICS9248BF-87 (Akimbo AP1200)

    ICS9248BF-96 (Fujitsu FMV DESKPOWER C5/86WL)

    ICS9248BF-102 (PC CHIPS M755LMR)

    ICS9248EF-199 (Biostar M7SUA, Matsonic MS9357E)

    ICS932S401EGLF (SuperMicro X7DA3+, Tyan Tempest i5400PW)

    ICS932S421BGLF (Intel D5400XS, Tyan Tempest i5400XL)

    ICS94201DF (ASUS TUSL2-C)

    ICS94222AF (ASUS CUV4X-E)

   ICS94225AF (EPoX EP-8K7A, ASUS A7M266)

    ICS94228BF (EPoX EP-8KHA+, EPoX EP-8K3A/+, ASUS A7V333)

    ICS94229AF (Soyo K7V Dragon Plus!)

   ICS94237AF (Asus CUV266)

    ICS950209CF (Fujitsu-Siemens Scaleo L)

    ICS950405AF (ASUS K8V, ECS KV2 Lite )

    ICS950410AFLF (MSI K8T NEO2-F V2.0)

    ICS950703BF (ASUS P4T533)

    ICS950812BG (Compaq Presario 2201AP)

    ICS950910AF (Medion Powerplus 3200+,MSI KM3M-V)

    ICS951402AG (HP Compaq nc4010)

    ICS951403CF (FIC AT31)

    ICS951412AG (HP Pavilion ZV6000)

    ICS951416BGLF (HP 6515B/6715B)

    ICS951417AFLF (Intel D101GGC)

    ICS951461BGLF (DFI ICFX3200)

    ICS951462AGLF (Acer Aspire 5100)

    ICS951463BGLF (Acer Aspire M5610)

    ICS951464AGLF (Acer M1100)

    ICS952001AF (MSI 645U)

    ICS952003AF (ASUS P4S333-C)

    ICS952013CFLF (Sony VGC-M1)

    ICS952018AF (Acer E661FXM, ASUS P4S800-MX)

    ICS952505AF (ASRock 939Dual-SATA2)

    ICS952607EF (ASUS P4C800/P4P800, Foxconn 865A01-PE)

   ICS952611BF (MSI MS-6728)

    ICS952619CF (AOpen AX4SPE Max)

    ICS952623CG (Toshiba Satellite P10-554)

    ICS952703BF (Asrock K7S8XE+)

    ICS952906AGLF (VIA PICO ITX EPIA PX10000G, Fujitsu Siemens Amilo Pro V2030)

    ICS953002DFLF (ABIT IP95)

   ICS953008BFLF (ASUS P5VD2-X)

    ICS953401CFLF (Fujitsu sienems P5SD2-FM)

    ICS953805CFLF (ECS GS7610 ULTRA V1.1C, ASUS A8S-X-UAYZ, Foxconn 761GXK8MC)

    ICS954103EF (Gateway 505GR)

    ICS954105BF (HP xw4400)

   ICS954108CFLF (Intel D975XBX)

    ICS954119DFLF (MEDION MD8800[MSI MS-7204])

    ICS954123CGLF (ASUS P5W-DH/P5D)

    ICS954124AFLF (Shuttle SD37P2)

    ICS954127BFLF (ABIT IL9 Pro)

    ICS954141CFLF (ASUS P5LP-LE)

    ICS954201BGLF (Samsung X20)

    ICS954213AGLF (ASUS A6VA, M9V/N, COMPAQ Presario B2800)

    ICS954227CGLF (Sony VAIO VGN-S460/S580P)

    ICS954310BGLF (Acer Aspire 5570Z/5601AWLMi, Mitac 8258i, Toshiba Satellite L45-S4687)

    ICS954321AGLF (TOSHIBA Tecra A-8)

    ICS954519BGLF (MSI 975X Platinum)

    ICS954552CGLF (ASUS N4L-VM)

    ICS9LPRS113AKLF (MSI P45 Diamond/platinium/Neo, Dell XPS-435/9000)

    ICS9LPRS133BKLF (MSI X58 eclipse SLI)

   ICS9LPRS139AKLF (EVGA X58 SLI E762, Foxconn BloodRage, Dell Studio XPS 435 MT, MSI P45 Neo-F)

   ICS9LPRS140CKLF (Asrock P55 Pro)

   ICS9LPR310BGLF (ASUS N10J, Mitac 8258i, Toshiba Satellite L45-S4687)

    ICS9LPR316AGLF (Kohjinsha SH6/SH8)

    ICS9LPR321BKLF (Sony VAIO VGN-FE31Z/41Z, VAIO UX series)

    ICS9LPRS355BGLF (HP 2510P)

    ICS9LPR362AGLF (ASUS N81VP)

    ICS9LPR363DGLF (ASUS G1S/G2S/F3SV/F8SV/A7S-7S006C/A6JM/G1Sn/A8SC/G60VX,Intel D945GSEJT)

    ICS9LPRS365BGLF (FS U9200 with the hardware remodeling, Acer 7730G)

    ICS9LPR367AGLF (ASUS Nova Lite EP20)

    ICS9LPRS419DFLF (ECS 945GCT-M/1333, Acer AM5630, Lenovo 9702 A66, ABIT I45-CV)

    ICS9LPR426AGLF (ASUS Eee PC)

    ICS9LPR427AGLF (ASUS Eee PC 1000/1005PE, Foxconn Qbook)

   ICS9LPR427CGLF (ASUS Eee PC T91MT/T91/1101HA/1201HA)

    ICS9LPRS441AGLF (ASUS AT5NM10-I)

    ICS9LPRS471AKL (ECS A770M-A)

    ICS9LPRS477BKL (Asus M3A, DFI LP UT 790FX-M2R)

    ICS9LPR501HGLF (ABIT IB9,IP35)

    ICS9LPR501SGLF (Toshiba Tecra A9 with the hardware modification)

    ICS9LP505-2HGLF (Sony VAIO type R master)

   ICS9LPRS509HGLF (DFI Infinity P965-S, Biostar TP35D2-A7, Foxconn P35A, ECS P35T-A V1.0)

    ICS9LPRS511EGLF (Foxconn G9657MA-8EKRS2H, Shuttle SP35P2 PRO/X27D Barebone, Supermicro C2SBA)

    ICS9LPRS514EGLF (MSI P965 platinum, Foxconn 946GZ7MA-8K2SH)

    ICS9LPRS552AGLF (ASUS P5K31-VM/P5B-E/P5B-Plus/P5B[Vanilla], GIGABYTE G33M-DS2R)

    ICS9LPRS587AGLF (GIGABYTE GA-965P-DS3)

    ICS9LPRS587EGLF (GIGABYTE P35-DS3)

    ICS9LPR600CGLF (ASUS X59SR/F80CR/X71SL, LG E500 K.APSAG, MSI CX600, Packard Bell BV GD-T671MG, Acer aspire M1610)

    ICS9LPR604AGLF (Intel D201GLY)

    ICS9LPRS906CGLF (MSI P35 Platinum)

    ICS9LPRS910BKL (MSI X38 Diamond)

    ICS9LPRS914EKL (Gigabyte X38-DQ6,X38T-DQ6,GA-P45-DS3L,GA-EP43 DS3L)

    ICS9LPRS916JGLF (ASUS P5K, P5QL Pro)

    ICS9LPRS918BKL (ASUS P5K/3 Deluxe, P5E, P5Q Deluxe, P5Q-E, P6T Deluxe)

    ICS9LPRS918JKL (DFI LanParty DK X38/X48 T2R, UT X48 T3R, LanParty UT/DK/JR X58)

    ICS9LPRS919BKL (Foxconn Mars)

    ICS9LPRS926EGLF (ECS P45T-A/X48T-A)

    ICS9LPRS929AKLF (ASUS W90/G72GX, MSI Wind U120)

    ICS9LPRS954BGLF (ASUS P5KPL-AM)

   Fix ICS9LR3362CGLF (ASUS UL30A/UL30VT)

    ICS9UMS9610BL (Sony VAIO P Series, Dell mini 10)

    CV110JPVG (Intel Nine Mile D945PLNM)

    CV115CPV (Intel D915PCY)

    CV122CPVG (ASUS P5LD2-VM SE)

    CV125PAG (FSC Amilo Pro 3505, Acer TravelMate 2428AWXMi)

    CV137PAG (FSC Amilo 1650G)

    CV152PVG (SuperMicro X7DB8+)

    CV174CPAG (Intel DG965LV/DQ965GF/DG965RY/DG965WH/DP965LT)

    CV179CNLG (Samsung NC10)

    CV183APAG (Intel DQ35JOE, Dell Optiplex 330)

    CV184-2APAG (NEC Express5800 S70 Type FL)

    CV190BPAG (ASUS IPIBL-LA[Berkeley])

    CV193CPAG (ECS X58B-A, SUN Ultra 24)

    CY28341OC-3 (Biostar M7VIZ)

    CY28346ZI-2 (IBM ThinkP
